RAL Space Quest UAV Q200 & Q300 UAVs
22 Nov 2018
Yes
-







Yes


These large fixed wing craft are primarily used for the collection of surveying or photogrammetry datasets. Their configuration enables them to have large runtimes and combined with a large area coverage suits them for large-scale applications (e.g. DEM construction of an area several square kilometers in size). Their size and complexity require that a team of two people operate the craft, with a pilot and commander role being necessary. The craft differ in their payload capacity, with the Q300 having a larger payload available for sensors such as NDVI or multi-spectral.

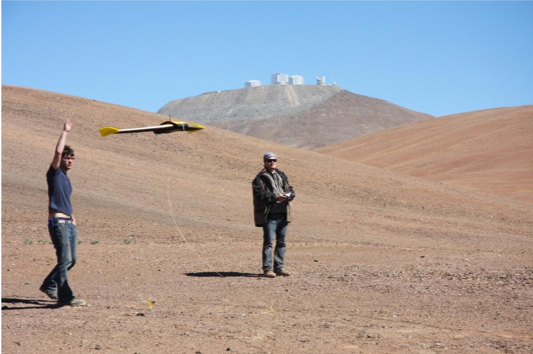

Below we give the specificaions and capabilities of each craft. Note that where “Max” specifications are listed, it is important not to assume that all “Max” conditions can be met in one flight.  In order to achieve just one “Max” condition, other flight conditions will have to be sacrificed. For example, a long endurance flight of 60km with the Quest 300 could not be achieved at a Max altitude of 12000ft. Contact Quest UAV for details on performance. Use of Q series UAVs in the Atacama desert

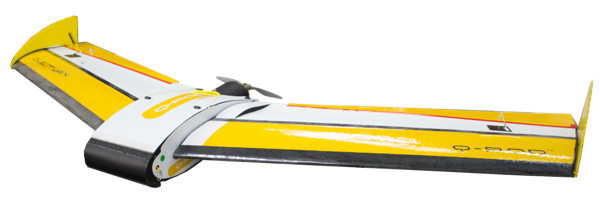

The QuestUAV 200 UAV

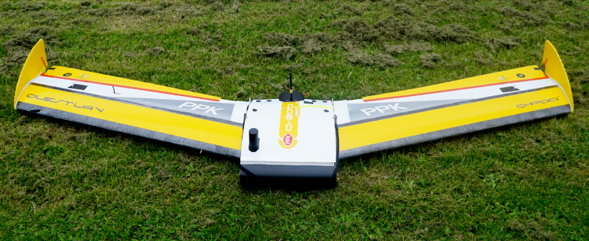

The Quest 300 UAV
​ ​ ​

UAV and Safety

Construction                     High density EPP

Propulsion                        Electric rear mount (safety)

Modes Available               Manual, Assisted, Autonomous

Telemetry Information       Height, Speed, Compass, Attitude,

                                          GPS Satellites, Battery Strength,

                                          & Link Strength

Moving Map                      Yes, with waypoints, route, heights,

                                          UAV heading & camera information.

Divert UAV Capability       Yes, to any waypoint or home

Safety Circle                      Yes, user defined. Will automatically

                                          return UAV to home when range

                                          exceeded.

Low Battery Warning         Yes, triple indication

Single operator Capability  Yes

No Laptop Option               Yes

Wingspan                            58 inches

Weight                                3100g (+/- 200g)

Launch System                   Quest Launch Line

Max Windspeed                  40 mph

Avg Cruising Speed            40 mph

Max Cruise Speed               60 mph

Avg Landing Speed            25 mph

Auto Takeoff                       Yes. Manual take-off also available.

Land Assist                         Yes. Semi-autonomous (pilot has

                                            directional control and overshoot

                                            control)

Preplanned routes               Available

Camera Specifications

Camera                                Modified Lumix LX5

Gimballed                            Yes (roll channel from IMU)


JPG image size                   4mb

RAW size                            12 mb

Continuous Nav on Trigger Yes



Survey Specifications

Minimum Trigger Time      1.5 seconds

Overlap Along                    Average 70%

Maximum Survey Area      100Ha

Survey Time                       7 to 15 mins (route & wind factors)

Max Image Resolution       1cm

Pitch/Roll/Yaw Data           Yes if Logger Fitted

Lat Long & Trigger Data    Yes if Logger Fitted



Transport

UAV Sections                     3 – wings and a pod

Carrier Type                        Rugged case (Explorer)

Carrier Weight Empty        12 Kg

Carrier + UAV                    22 Kg

​ ​ ​

UAV and Safety

Construction                     High density EPP

Propulsion                         Electric rear mount (safety)

Flight Time                        Max 1hr 30 min

Ceiling                               Max 12000 ft

Flight Length                     Max 60 km

Telemetry range                 Max 40 km (LOS)

Transmitter range              As per Certificate (Avg. 1.5km LOS)

Modes Available               Manual, Assisted, Autonomous

Telemetry Information       Height, Speed, Compass, Attitude

                                          GPS Satellites, Battery Strength, &                                           Link Strength

Moving Map                       Yes, with waypoints, route, heights,

                                           UAV heading & camera information

Divert UAV Capability         Yes, to any waypoint or home

Safety Circle                       Yes, user defined. Will automatically

                                            return UAV to home when range

                                            exceeded.

Low Battery Warning         Yes, triple indication

Single operator Capability  Yes

No Laptop Option               Yes

Wingspan                            60 to 80 inches

Weight                                3000g – 4000g

Launch System                   Quest Launch Line

Max Windspeed                  40 mph

Avg Cruising Speed            40 mph

Max Cruise Speed               65 mph

Avg Landing Speed            25 to 30 mph

Auto Takeoff                       Yes. Manual takeoff also available.

Land Assist                         Yes. Semi-autonomous (pilot has

                                            directional control and overshoot

                                            control)

Preplanned routes               Available



Transport

UAV Sections                    3 – wings and a pod

Carrier Type                       Rugged case (Explorer)

Carrier Weight Empty        12Kg

Carrier + UAV                    22Kg
