UK Space Facilities Airbus Stevenage Climatic Testing Facility

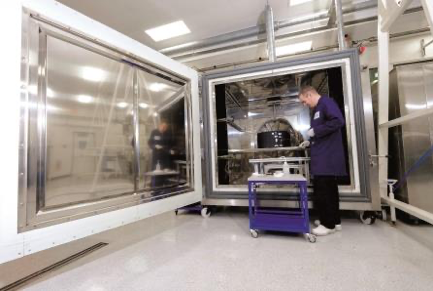

Each climate chamber is located within the EVT laboratory alongside our Thermal Vacuum facilities. Their varied sizes, temperature capabilities and access ports allow us to cater for a large variety of thermal testing requirements. Four are cryogenic rated and use liquid Nitrogen as a direct cooling method. We also have a humidity controlled chamber which maintains less extreme temperatures. Each of our climatic facilities is fully programmable and automated using advanced Eurotherm Controllers. Combine this with our data logging facilities and the scenarios we can cater for are unlimited.
Tiger - Cryogenic Chamber Internal Dimensions: 600mm3 Temperature Range: +180°C / -180°C Max temperature Rate: 10-15°C/min Controller: Eurotherm 2704
Rhino - Large Cryogenic Chamber Internal Dimensions: H= 3600mm W= 4800mm D= 3600mm Temperature Range: +180°C / -160°C Max temperature Rate: 2.5-5°C/min Controller: Eurotherm 2704
Cryo Montford - Cryogenic Chamber Internal Dimensions: H= 600mm W= 900mm D= 600mm Temperature Range: +180°C / -180°C Max temperature Rate: 5-10°C/min Controller: Eurotherm 2704
Fissions - Humidity Chamber Internal Dimensions: 1000mm3 Temperature Range: +150°C / -70°C Max temperature Rate: 2°C/min Controller: Eurotherm 2704
Hippo - Cryogenic Chamber Internal Dimensions: 1500mm3 Temperature Range: +200°C / -180°C Max temperature Rate: 2.5-5°C/min Controller: Eurotherm 2704
