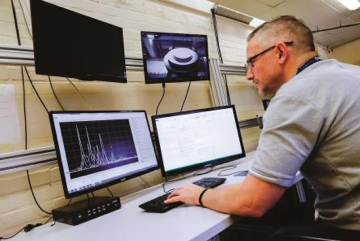

This enables us to test a wide range of products ranging from small components of a few grams, up to large payloads of several tonnes. Both vibration tables are driven by the latest digital controllers capable of sine, random and shock profiles that can excite at levels from 0.1 to 100g up to 2000 Hz. Multiple channels of data may be recorded and analysed in real time from our Control Room. The latest system allows up to 120 channels of data to be analysed simultaneously. Or with the addition of a second recorder, a further 40 channels can be added.	​ IMV A65 Shaker

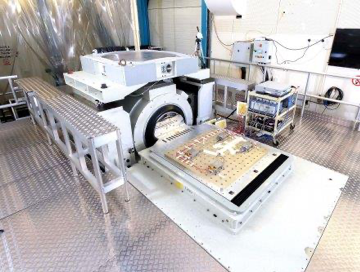

​IMV K200 Shaker Facilities: Maximum Thrust: 200,000 N Frequency Range: 5 - 2000 Hz Maximum Velocity: 2.0m/s Maximum Displacement: ± 76.2mm p-p Hydrodynamic Slip Tables: 1.2m x 1.2m and 1.8m x1.8m Head Expanders from: up to 1.2m Diameter Acceleration up to: Sine 1000m/s2 Random 700m/s2 Shock 2000m/s2
​IMV A65 Shaker ​Facilities: Maximum Thrust: 65,000 N Frequency Range: 5 - 2000 Hz Maximum Velocity: 2.0m/s Maximum Displacement: ± 76.2mm p-p Hydrodynamic Slip Table: 0.6m x 0.6m Head Expanders from: up to 0.6m Diameter Acceleration up to: Sine 900m/s2 Random 630m/s2 Shock 1500m/s2
​M+P International VIBCO Controller x 2 off ​Facilities: 120 and 40 Channel Analysis System. Sine, random and shock control and analysis.

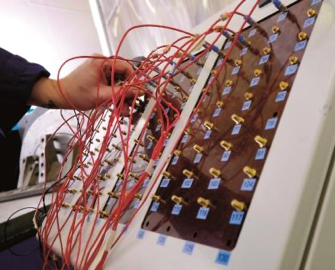

​Data Channels Facilities: 72 channels of Data Physics real time shock and vibration data capture 16 Channels of Strain Instrumentation 18 Channels of Force Instrumentation Up to 120 + 40 channels of acceleration instrumentation
